System Configurations

This page describes the supported system configurations of linorobot2.

Physical Robot Configurations

The following two configurations are supported for a Physical Robot.

Onboard Robot Computer configuration

This configuration features a computer mounted on the robot that runs ROS and communicates with the Microcontroller. As well, the network-connected Workstation provides for running Rviz and other graphical programs on a desktop while the Physical Robot moves around. The Robot Computer Config is shown below.

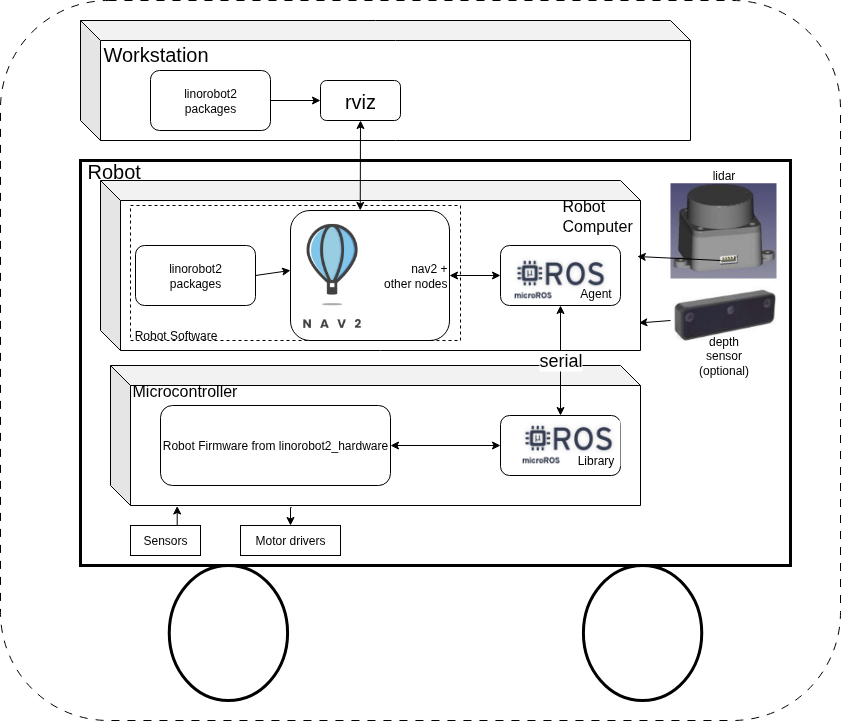

IMAGE: robot_computer_config

Linorobot2 is installed on both the Workstation and the Robot Computer. A linorobot2 launchfile starts Rviz on the workstation. Other linorobot2 launchfiles on the Robot Computer start robot bringup and Nav2.

The firmware running on the Microcontroller publishes sensor data to Robot Software, which enables Nav2 to run SLAM and path planning and navigation algorithms which in turn publish motion commands back to the Robot Firmware running on the Microcontroller. Microcontroller Firmware runs PID loops and directs motor drivers to move the wheels.

The micro-ROS agent on the Robot Computer publishes and subscribes to Robot Software topics on the Robot Computer and passes topic messages to the micro-ROS library in Robot Firmware, which makes them available for Robot Firmware use.

High bandwidth sensors like lidar and depth camera are connected directly to the Robot Computer.

Advantages

  • Robot navigation is wholly contained on the robot, making it independent of network connectivity and thus more robust.

Disadvantages

  • Robot Computer brings extra power requirements, weight and cost

Robot Wifi Configuration

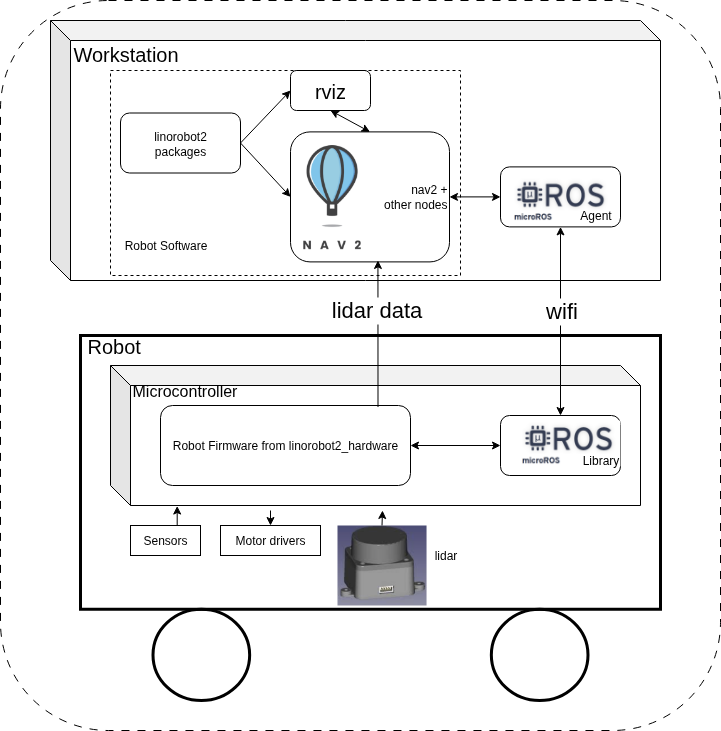

This configuration supports simple, low-hardware-cost robots by eliminating the Robot Computer hardware. The Workstation runs the Robot Software, as well as Rviz and other graphical programs. The Workstation communicates over wifi with an ESP32 Microcontroller on the Physical Robot. This config takes advantage of micro-ros' ability to use either serial or wifi links. The Robot Wifi config is shown below. robot_wifi_config

Robot Firmware running on the Microcontroller publishes sensor data to Robot Software running on the Workstation, which enables Nav2 to run SLAM and path planning and navigation algorithms that in turn publish motion commands to Robot Firmware on the Microcontroller. The firmware runs PID loops and directs motor drivers to move the wheels.

The micro-ROS agent running on the Workstation publishes and subscribes to ROS topics from the Robot Computer software and passes topic messages over a wifi connection to the micro-ROS library on the Microcontroller, which makes them available to firmware.

Lidar sensor data is passed directly from the input serial port of the Microcontroller over wifi to a UDP port on the Workstation.

Advantages

  • Lowest cost configuration eliminates Robot Computer hardware
  • Lower power, weight

Disadvantages

  • Only supported on ESP32 microcontrollers (bandwidth on wifi-enabled Pico microcontrollers is insufficient.)
  • Limited number of lidar sensors supported by firmware
  • Dependent on excellent wifi connectivity. Depending on the wifi network, dead-spots may interrupt navigation and desired frame rate may not be achieved

Simulated Robot Configurations

The following configurations are supported for simulating robots.

Workstation Simulation Configuration

This configuration runs a gazebo simulation of the robot, Robot Computer software, and Rviz and other graphical programs on the Workstation. Only packages from the linorobot2 repo are used - the linorobot2_hardware repo is not involved (there is no hardware).

This config enables development of robot algorithms prior to putting them on a Physical Robot. It can optionally be run in a docker container, meaning the host OS is decoupled from ROS dependencies.

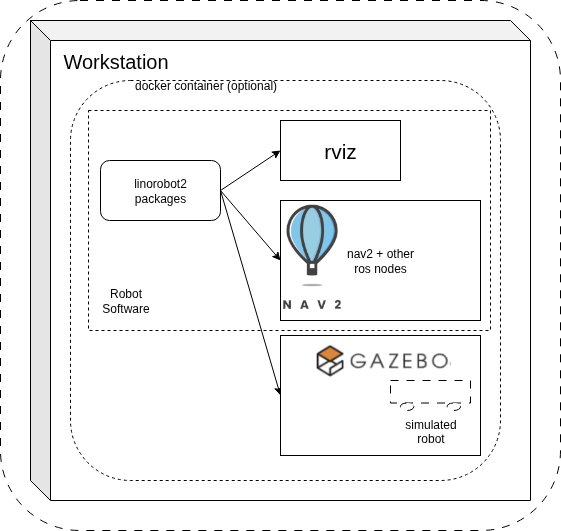

The Workstation Simulation configuration is shown below. workstation simulation config

Advantages

  • Develop and test on a "digital twin" of the Physical Robot
  • Test higher-level system components in a repeatable environment
  • Eliminate HW-related problems (e.g. hardware malfunctions, need to reposition robot, battery and comms issues, etc.)

Disadvantages

  • Hardware model fidelity, especially for sensors, limits simulation accuracy
  • The ultimate goal is to run on a real robot; simulation can only be a step on the path to that goal

Cloud Simulation Configuration

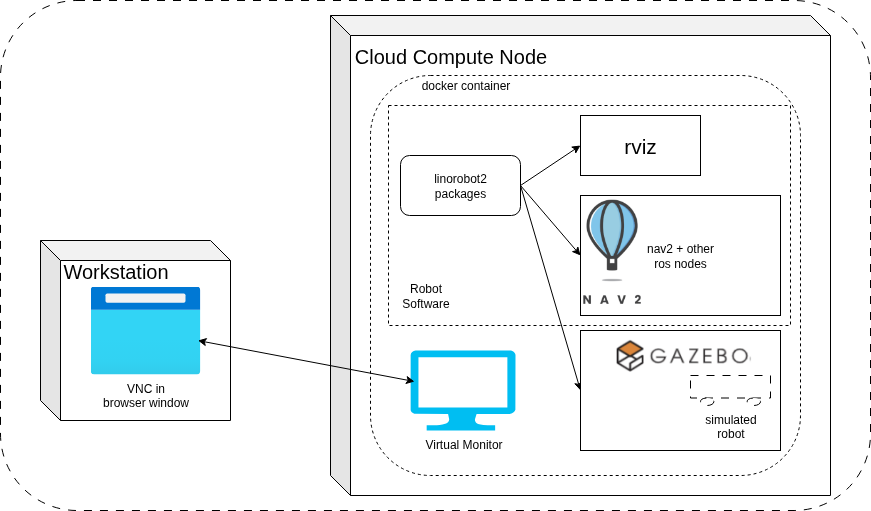

This configuration runs a Simulated Robot in Gazebo. Robot Software, Rviz and other graphical programs run in a Docker instance on a virtual computer in the cloud. Only packages from the linorobot2 repo are used - the linorobot2_hardware repo is not involved (there is no hardware). This config enables development of robot algorithms on a really powerful cloud compute instance prior to putting them on a Physical Robot. The Cloud Simulation config is shown below. cloud simulation config

Advantages

  • Same as Workstation simulation
  • You can rent higher-performance configurations (e.g. many NVidia GPUs) to speed up simulation

Disadvantages

  • Same as Workstation simulation
  • You typically pay based on cloud CPU usage. May be more or less expensive than buying a high-end workstation, depending on your use and needs.
  • Using virtual KVM over a VPN and setting up NVidia Cuda libraries in the cloud adds configuration complexity
