Welcome to the linorobot2 documentation. This set of guides walks you through everything you need to go from a bare robot with wheels and motors to a fully autonomous robot that can build maps of its environment and navigate them on its own.

These docs are structured as a tutorial sequence, with each section building on the previous one, explaining not just how to configure something but why it exists and what role it plays in the larger system. The approach is inspired by the Nav2 setup guides and the original linorobot ROS1 wiki.

linorobot2 supports three robot base configurations (2WD, 4WD, Mecanum drive) and integrates with ROS2 Jazzy, Nav2, SLAM Toolbox, and robot_localization out of the box.

Architecture

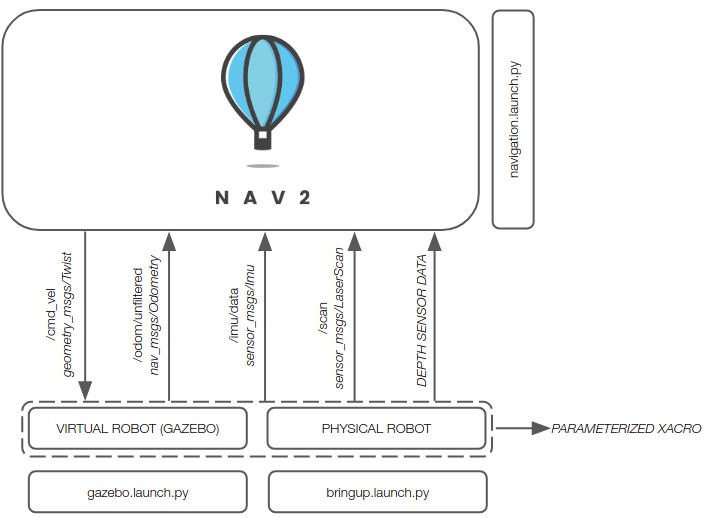

The diagram below shows the launch file structure and how the different components connect:

linorobot2 architecture

The Journey: Bare Robot → Autonomous Robot

Here's the full path from hardware to autonomous navigation, in order:

1. Installation

Get linorobot2 installed on both your robot computer and your host/development machine. Covers the one-command install.bash setup script, the supported robot types and sensors, points to documentation on how to install the on-robot firmware for motor control, and how to install the RViz visualization package for remote debugging. Also covers the Gazebo simulation setup and the Docker option for host machines not running Ubuntu 24.04.

2. Base Controller

The base controller is the bridge between ROS2 and your robot's motors. A microcontroller (e.g., Teensy) running micro-ROS handles the low-level work: receiving /cmd_vel velocity commands, driving the motor controllers, reading wheel encoders, and publishing raw odometry and IMU data. This section explains the hardware architecture, the published/subscribed topics, and how to bring up the microcontroller agent.

3. Odometry

Odometry is the robot's estimate of its position based on how far its wheels have turned. Wheel odometry alone drifts over time, as slip, uneven terrain, and mechanical tolerances all accumulate errors. This section explains how the robot_localization package uses an Extended Kalman Filter (EKF) to fuse wheel odometry with IMU data, producing a much more reliable filtered odometry on /odometry/filtered. It also covers how to verify your odometry before running SLAM.

4. Setting Up Sensors

Sensors are what let the robot perceive its environment. linorobot2 uses 2D lidar (LaserScan) as the primary sensor for mapping and obstacle detection, with optional depth cameras (RGBD) for detecting obstacles outside the lidar's scan plane. This section covers the supported real hardware sensors and how to configure them via the install script, as well as how simulation sensors are defined in URDF/xacro files and how to adjust their positions on the robot.

5. Setting Up Transforms (TF)

TF2 is the ROS2 system that tracks the spatial relationship between every coordinate frame on the robot, from the global map frame down to each individual sensor. This section explains the full frame hierarchy (map → odom → base_footprint → base_link → sensors), what publishes each transform, and how to configure sensor positions in the URDF properties files. Includes verification steps using view_frames and RViz.

6. Mapping

Before autonomous navigation is possible, the robot needs a map. This section covers SLAM (Simultaneous Localization and Mapping) using SLAM Toolbox, including how it works conceptually (scan matching and loop closure), the key configuration parameters in slam.yaml, and the step-by-step process for driving the robot through an environment, building the map, and saving it to disk.

7. Navigation

With a map in hand, Nav2 can navigate the robot autonomously. This section gives an overview of Nav2's components (AMCL, global planner, local controller, costmaps, behavior tree), walks through launching navigation with a pre-built map, and explains how to set the robot's initial pose and send navigation goals in RViz. Importantly, it covers the robot footprint, the one parameter you must configure to match your robot's actual size.

8. Docker

Covers running linorobot2 without a native ROS2 installation using Docker. Includes configuring the Docker environment for hardware, simulation, or CUDA-accelerated simulation; building the image; web-based visualization via KasmVNC (accessible in any browser at http://<host_ip>:3000); running the Physical Robot or Simulated Robot via Tmuxinator profiles; and creating custom profiles for your own workflow.

9. Simulation Tools

Documents the two Gazebo world generation tools in linorobot2_gazebo. image_to_gazebo is a GUI tool that converts any floor plan image into a Gazebo world by calibrating its scale and origin interactively. create_worlds_from_maps is a batch CLI tool that converts all saved SLAM maps into Gazebo worlds in one command. Both let you simulate in the exact same environment your robot operates in physically.

Quick Reference: Key Files

File Purpose
install.bash One-command robot computer setup
linorobot2_base/config/ekf.yaml EKF sensor fusion configuration
linorobot2_description/urdf/<robot>_properties.urdf.xacro Robot dimensions and sensor poses
linorobot2_navigation/config/slam.yaml SLAM Toolbox configuration
linorobot2_navigation/config/navigation.yaml Nav2 configuration (including footprint)
linorobot2_navigation/maps/ Where to save maps

Quick Reference: Key Launch Commands

Command Purpose
ros2 launch linorobot2_bringup bringup.launch.py Boot the Physical Robot
ros2 launch linorobot2_gazebo gazebo.launch.py Start Simulated Robot
ros2 launch linorobot2_navigation slam.launch.py Start SLAM (mapping)
ros2 launch linorobot2_navigation navigation.launch.py map:=<map>.yaml Start Nav2 (navigation)
ros2 launch linorobot2_viz slam.launch.py Visualize SLAM from host machine
ros2 launch linorobot2_viz navigation.launch.py Visualize navigation from host machine
